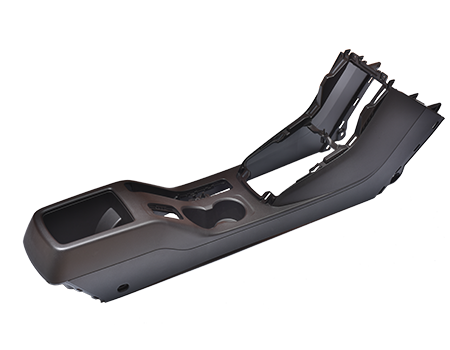

1. Part information:

• Part Name：Rear Console
• Entry Name：SPD78 (CN180C)
• Part size：1079 x 266 x 335
• Mold Size：1300 x 1200 x 1140
• Insert material :1.2738H
• Part material：PP+EPDM+T15
• Cavity Number：1 x 1
• Injection system ：3 drops YUDO hot nozzles
• Cycle time：70S
• Design time：15workdays
• Manufacture time：70workdays
• Manufacture date：June 2016

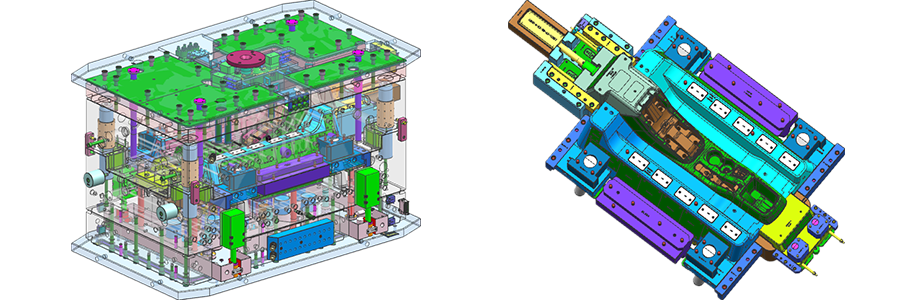

2. 3D information:

3. Mold flow analysis:

4. Mould photo:
