2K tool

2K or 'two-shot' injection moulding consists of processing two different polymers (or two different colours of one polymer) into an end product by means of one injection moulding process. This technology enables several functions to be integrated into an injection moulded product.

1. Part information:

• Part Name： OPE 1-6
• Entry Name：SP1468
• Part size： 25X13X17
• Mold Size： 492X492X399
• Insert material : 1.2343 HRC 52 – 54
• Part material： PC+ABS
• Cavity Number： 1+1+1+1+1+1
• Injection system ： 3 Nozzles and 3 Nozzles HRS Hot runner
• Cycle time：25S
• Design time：15workdays
• Manufacture time：50workdays
• Manufacture date： June 2013

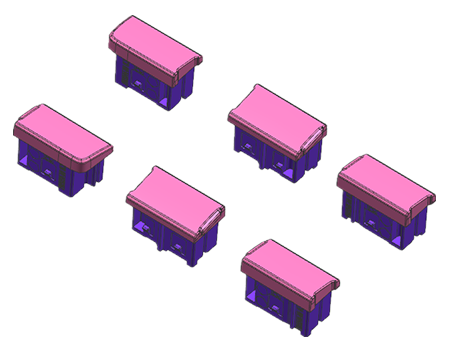

2. 3D information:

3. Structure information:

4. Mould photo:
