1. Part information :

• Part Name: Door panel
• Entry Name: SPD87(CN112)
• Part size: 895 x 770 x 105
• Mold Size: 1560 x 1420 x 1140
• Insert material :1.2738H
• Part material: PP+EPDM+T15
• Cavity Number: 1 x 1
• Injection system : 7 drops YUDO hot nozzles, valve gate
• Cycle time: 65S
• Design time: 15workdays
• Manufacture time: 60workdays
• Manufacture date: January 2017

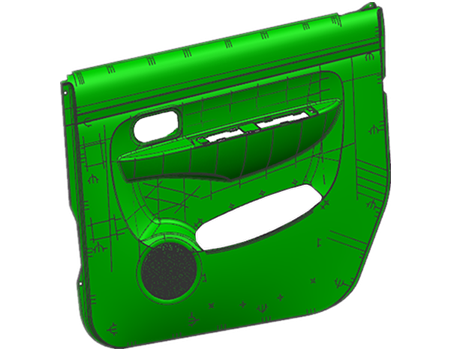

2. 3D information:

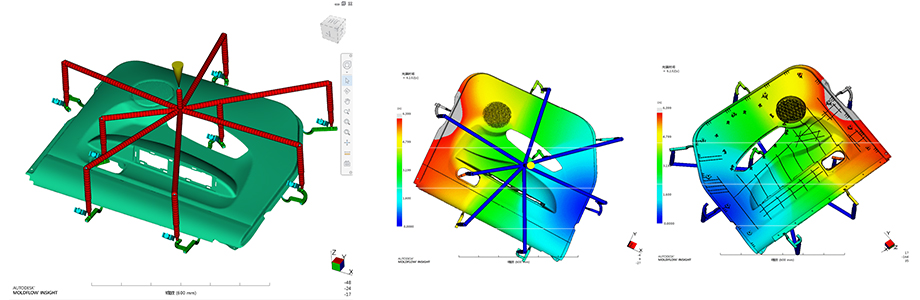

3. Mold flow analysis:

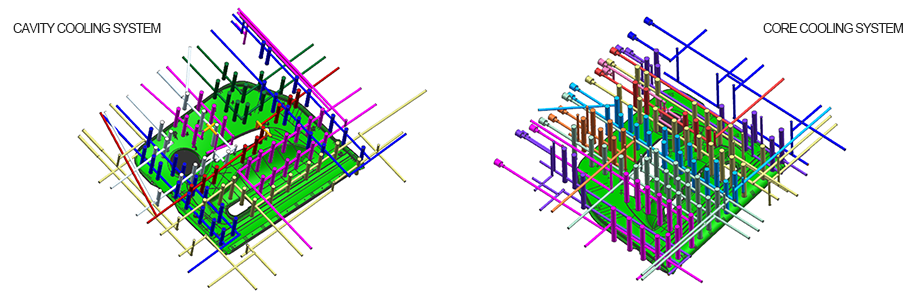

4. Cooling system：

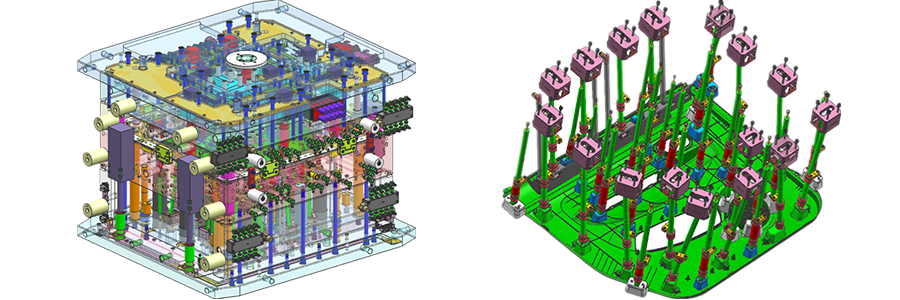

5. Parts assembly：

6. Lift assembly process：
